Cornell Dubilier Electronics (CDE)

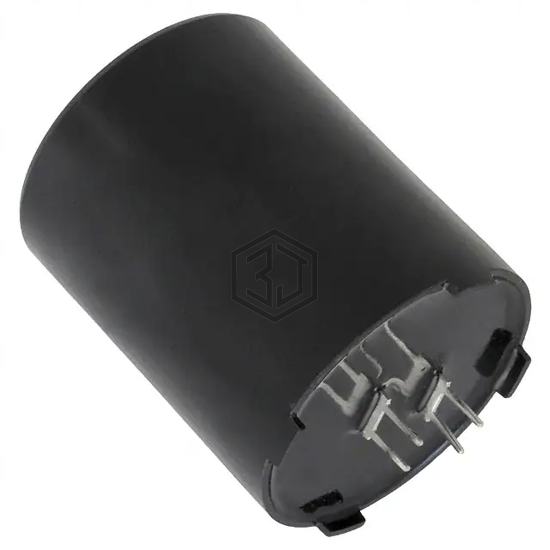

CAP FILM 50UF 10% 750VDC RADIAL
UNL7W50K-F is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 50UF 10% 750VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 750V, package / case Radial, Can.
In Stock: 7,994
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 50 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 750V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 7 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 2.500" (63.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.500" (12.70mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Low ESR |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BLS506K701R414 | Cornell Dubilier Knowles | 50UF 700VDC 57.5X50X35MM LS=52.5 | 99% | View |
| BLS506K701N504 | Cornell Dubilier Knowles | 50UF 700VDC 42X55X40MM LS=37.5 | 99% | View |
| BLS506K601R304 | Cornell Dubilier Knowles | 50UF 600VDC 57.5X45X25MM LS=52.5 | 96% | View |
| EFDKA60K506E174DHT | Eaton - Electronics Division | CAP FILM 50UF AUTO 600VDC RAD | 96% | View |
| MKP1848C65050JP5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 500VDC RADIAL | 93% | View |
| MKP1848C65050JY2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 50UF 5% 500VDC RADIAL | 93% | View |
Submit your RFQ for UNL7W50K-F and get a quote within 24 hours.
