Cornell Dubilier Electronics (CDE)

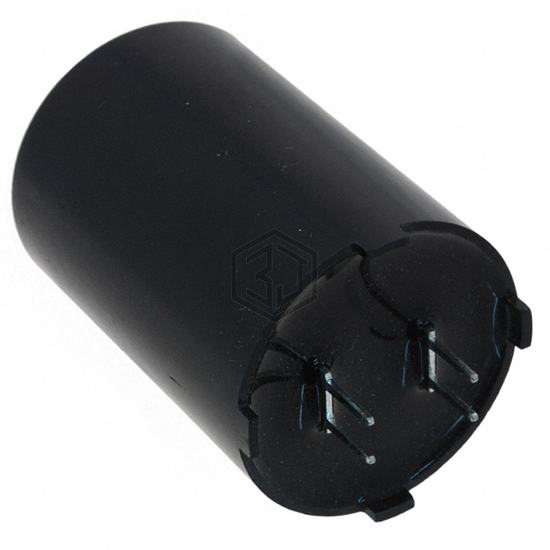

CAP FILM 7.5UF 10% 1.2KVDC RAD
UNL12W7P5K-F is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 7.5UF 10% 1.2KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1200V (1.2kV), package / case Radial, Can.
In Stock: 58
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 7.5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 13.5 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.134" (54.20mm) |
| Termination | PC Pins |
| Lead Spacing | 0.500" (12.70mm) |
| Applications | - |
| Ratings | - |
| Features | Low ESR |
