Cornell Dubilier Electronics (CDE)

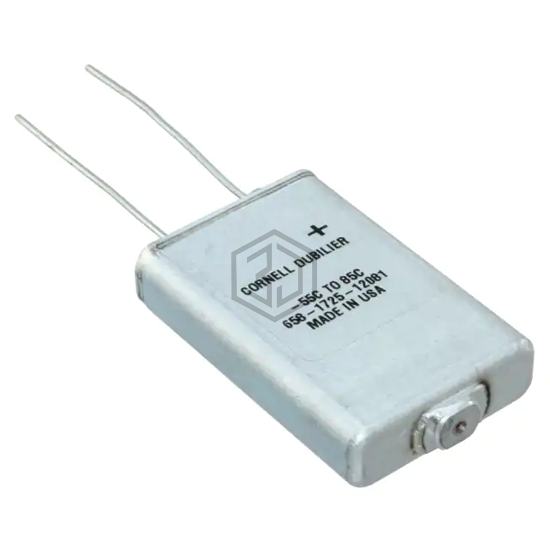

CAP ALUM 690UF 20% 100V FLATPACK
THAS691M100AD0C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 690UF 20% 100V FLATPACK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case FlatPack.
In Stock: 2,614
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 690 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 130mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 2.618" L x 1.000" W (66.50mm x 25.40mm) |
| Height - Seated (Max) | 0.366" (9.30mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THAS691M100AD1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 690UF 20% 100V FLATPACK | 100% | View |
| MLSH701M075JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 700UF 20% 75V RADIAL | 80% | View |
| 601D707G015FE1 | Vishay Sprague | CAP ALUM 700UF 15V AXIAL | 54% | View |
| 601D707H015FE1 | Vishay Sprague | CAP ALUM 700UF 15V AXIAL | 54% | View |
| 604D701F040GL2 | Vishay Sprague | CAP ALUM 700UF 40V AXIAL | 54% | View |
| 604D701G030GJ7 | Vishay Sprague | CAP ALUM 700UF 30V AXIAL | 54% | View |
Submit your RFQ for THAS691M100AD0C and get a quote within 24 hours.
