Cornell Dubilier Electronics (CDE)

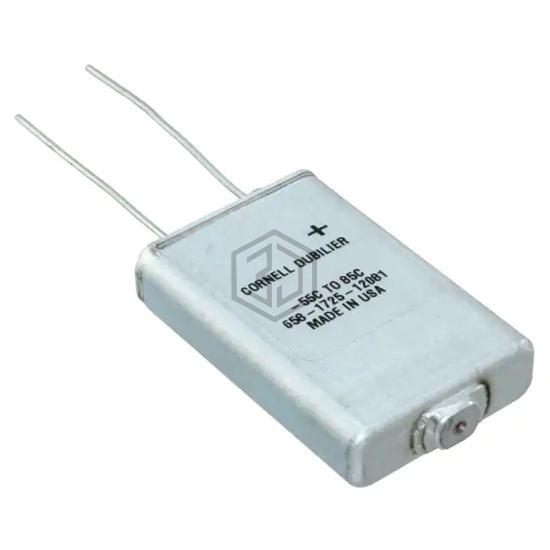

CAP ALUM 2000UF 20% 60V FLATPACK
THAS202M060AC0C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2000UF 20% 60V FLATPACK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 60 V, package / case FlatPack.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 60 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 2.118" L x 1.000" W (53.80mm x 25.40mm) |
| Height - Seated (Max) | 0.366" (9.30mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
Submit your RFQ for THAS202M060AC0C and get a quote within 24 hours.
