Cornell Dubilier Electronics (CDE)

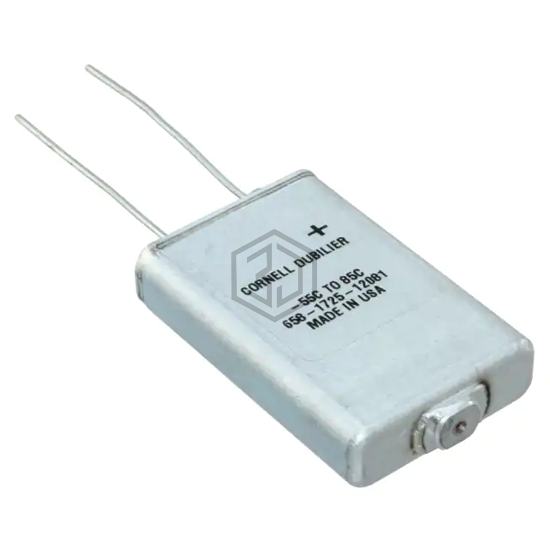

CAP ALUM 5200UF 20% 40V FLATPACK
THA522M040AD1C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 5200UF 20% 40V FLATPACK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage - rated 40 V, package / case FlatPack.
In Stock: 5,771
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.6 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 2.618" L x 0.953" W (66.50mm x 24.20mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THA522M040AD0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5200UF 20% 40V FLATPACK | 100% | View |
| B41605E7518M2 | EPCOS - TDK Electronics | CAP ALUM 5100UF 20% 40V SNAP | 77% | View |
| B41790A7528Q001 | EPCOS - TDK Electronics | CAP ALUM 5200UF 35V T/H | 72% | View |
| B41690A7528Q001 | EPCOS - TDK Electronics | CAP ALUM 5200UF 35V AXIAL | 72% | View |
| B41790B7528Q001 | EPCOS - TDK Electronics | CAP ALUM 5200UF 40V T/H | 70% | View |
| ELBK250ELL532AM20S | United Chemi-Con | CAP ALUM 5300UF 25V RADIAL | 68% | View |
