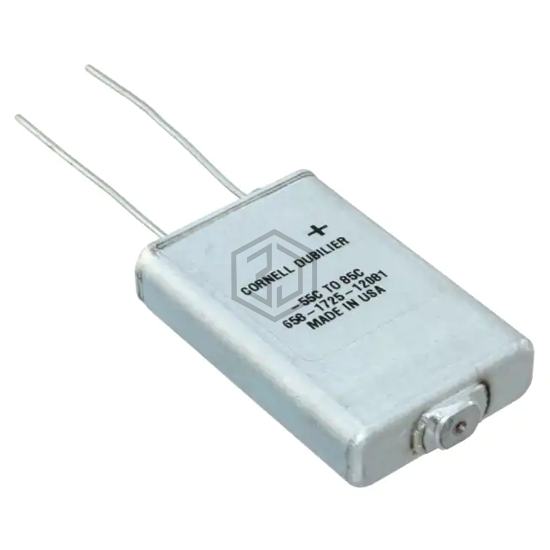

Cornell Dubilier Electronics (CDE)
CAP ALUM 4400UF 20% 35V FLATPACK
THA442M035AC0C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4400UF 20% 35V FLATPACK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage - rated 35 V, package / case FlatPack.
In Stock: 61
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4400 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.08 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 2.118" L x 0.953" W (53.80mm x 24.20mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
Submit your RFQ for THA442M035AC0C and get a quote within 24 hours.
