Cornell Dubilier Electronics (CDE)

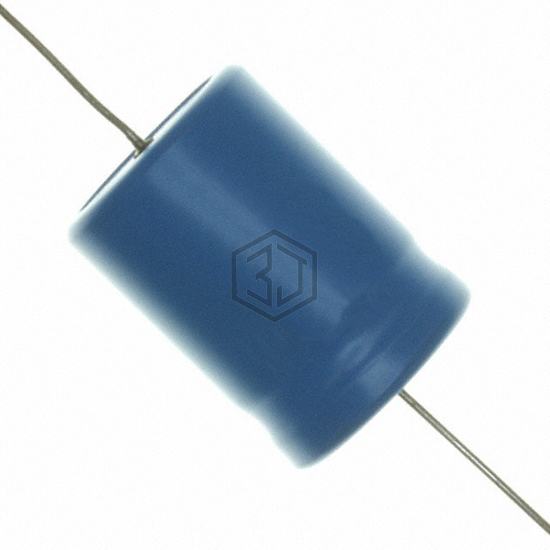

CAP ALUM 8200UF 15V AXIAL
TCX822U015N2L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 8200UF 15V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 15 V, package / case Axial, Can.
In Stock: 4,366
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 15 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.796 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.61 A @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.000" Dia x 2.625" L (25.40mm x 66.68mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TCX822U015N2L is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D828F025HT1 | Vishay Sprague | CAP ALUM 8200UF 25V AXIAL | 76% | View |
| MAL215065822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V RADIAL | 72% | View |
| EEU-FC1C822 | Panasonic Electronic Components | CAP ALUM 8200UF 20% 16V RADIAL | 69% | View |
| MAL225065822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V RADIAL | 64% | View |
| 35PX8200MEFC18X40 | Rubycon | CAP ALUM 8200UF 20% 35V RADIAL | 56% | View |
| THAS822M020AC1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 20V FLATPACK | 52% | View |
Submit your RFQ for TCX822U015N2L and get a quote within 24 hours.
