Cornell Dubilier Electronics (CDE)

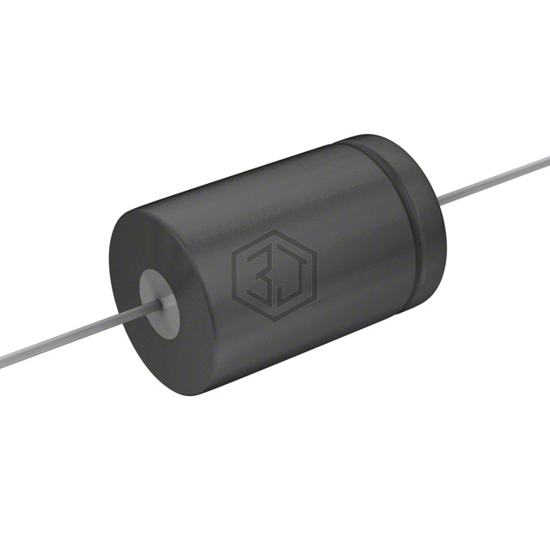

CAP ALUM 470UF 30V AXIAL
TCX471U030J1C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 470UF 30V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 30 V, package / case Axial, Can.
In Stock: 9,143
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 30 V |
| ESR (Equivalent Series Resistance) | 214mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.149 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.31 A @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.750" Dia x 1.125" L (19.05mm x 28.58mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TCX471U030J1C is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY350ELL471MJ30S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 90% | View |
| ELXZ250ELL471MH20D | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 88% | View |
| B41896C7477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 83% | View |
| UBW1V471MHD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 82% | View |
| UPW1H471MHD1CV | Nichicon | CAP ALUM 50V POLAR | 81% | View |
| 678D477M050DS5D | Vishay Sprague | CAP ALUM 470UF 20% 50V RADIAL | 79% | View |
Submit your RFQ for TCX471U030J1C and get a quote within 24 hours.
