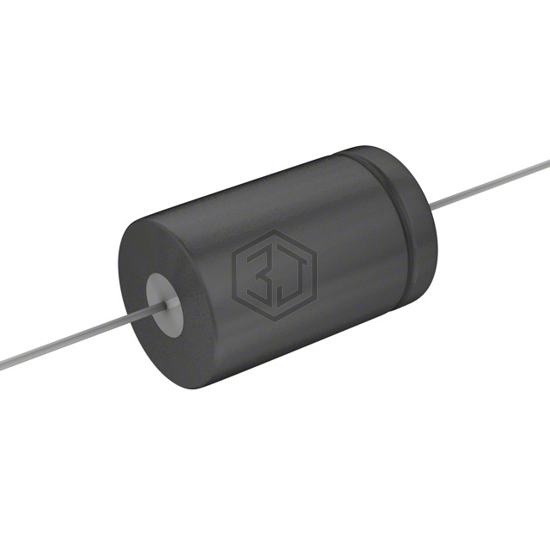

Cornell Dubilier Electronics (CDE)
CAP ALUM 600UF 50V AXIAL
TCG601U050L1G is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 600UF 50V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Axial, Can.
In Stock: 145
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 600 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 215mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.363 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.875" Dia x 1.375" L (22.22mm x 34.93mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
Submit your RFQ for TCG601U050L1G and get a quote within 24 hours.
