Cornell Dubilier Electronics (CDE)

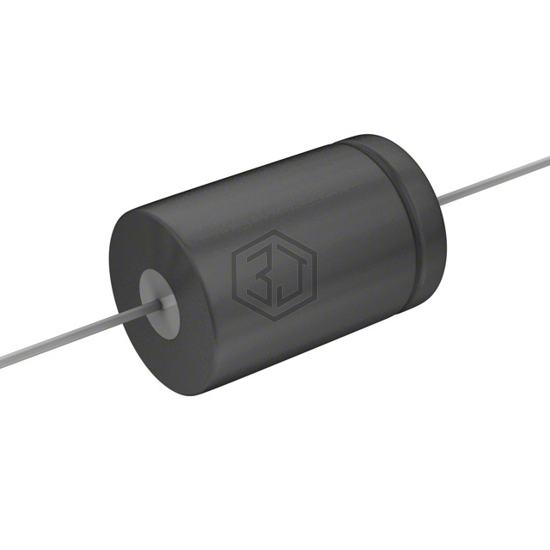

CAP ALUM 500UF 30V AXIAL
TCG501U030J1C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 500UF 30V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 30 V, package / case Axial, Can.
In Stock: 6,395
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 500 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 30 V |
| ESR (Equivalent Series Resistance) | 369mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 874 mA @ 120 Hz |
| Ripple Current @ High Frequency | 996.36 mA @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.750" Dia x 1.125" L (19.05mm x 28.58mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TCG501U030J1C is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D507H025DS5C | Vishay Sprague | CAP ALUM 500UF 25V RADIAL | 88% | View |
| TVA1209-E3 | Vishay Sprague | CAP ALUM 500UF 25V AXIAL | 88% | View |
| TVA1315 | Vishay Sprague | CAP ALUM 500UF 50V AXIAL | 67% | View |
| 601D507G050GL1 | Vishay Sprague | CAP ALUM 500UF 50V AXIAL | 67% | View |
| 601D507G050FS2 | Vishay Sprague | CAP ALUM 500UF 50V AXIAL | 67% | View |
| TVA1162-E3 | Vishay Sprague | CAP ALUM 500UF 16V AXIAL | 60% | View |
Submit your RFQ for TCG501U030J1C and get a quote within 24 hours.
