Cornell Dubilier Electronics (CDE)

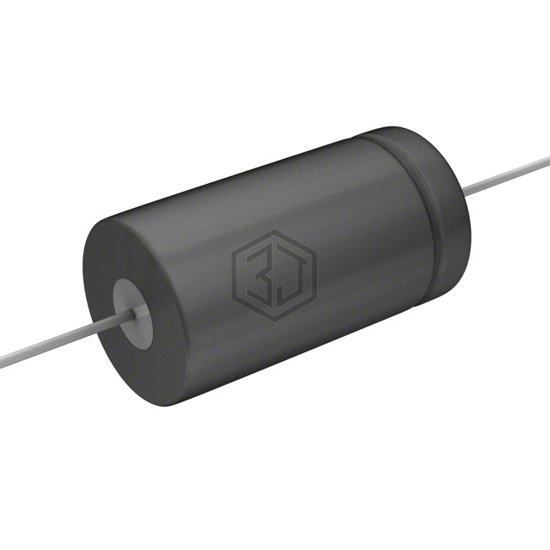

CAP ALUM 12UF 450V AXIAL
TCG120T450J1G is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 12UF 450V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Axial, Can.
In Stock: 8,470
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 14.5Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 244 mA @ 120 Hz |
| Ripple Current @ High Frequency | 305 mA @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.750" Dia x 1.375" L (19.05mm x 34.93mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TCG120T450J1G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2W120MPD | Nichicon | CAP ALUM 12UF 20% 450V RADIAL | 88% | View |
| UCY2G120MPD1TD | Nichicon | CAP ALUM 12UF 20% 400V RADIAL | 85% | View |
| UCY2G120MPD | Nichicon | CAP ALUM 12UF 20% 400V RADIAL | 85% | View |
| EKXJ451ELL120MJ20S | United Chemi-Con | CAP ALUM 12UF 20% 450V RADIAL | 83% | View |
| 400BXW12MEFR10X16 | Rubycon | CAP ALUM 12UF 20% 400V RADIAL | 80% | View |
| EKXJ351ELL120MJ16S | United Chemi-Con | CAP ALUM 12UF 20% 350V RADIAL | 76% | View |
Submit your RFQ for TCG120T450J1G and get a quote within 24 hours.
