Cornell Dubilier Electronics (CDE)

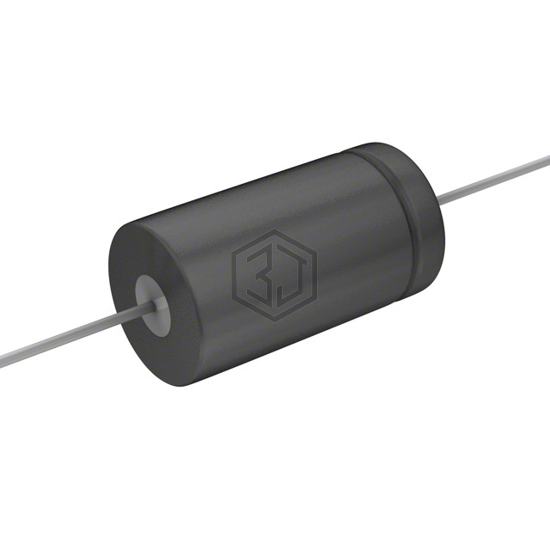

CAP ALUM 4UF 450V AXIAL
TC697 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4UF 450V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Axial, Can.
In Stock: 4,605
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 43.47Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 116 mA @ 120 Hz |
| Ripple Current @ High Frequency | 145 mA @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TC697 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400LEX3.9MEFC10X12.5 | Rubycon | CAP ALUM 3.9UF 20% 400V RADIAL | 73% | View |
| 400LEX3R9MEFC10X12.5 | Rubycon | CAP ALUM 3.9UF 20% 400V RADIAL | 73% | View |
| TE1503-E3 | Vishay Sprague | CAP ALUM 4UF 150V AXIAL | 56% | View |
| 600D405F200KD4 | Vishay Sprague | CAP ALUM 4UF 200V AXIAL | 56% | View |
| TE1302.1 | Vishay Sprague | CAP ALUM 4UF 50V AXIAL | 56% | View |
| 600D405G200DC5 | Vishay Sprague | CAP ALUM 4UF 200V AXIAL | 56% | View |
Submit your RFQ for TC697 and get a quote within 24 hours.
