Cornell Dubilier Electronics (CDE)

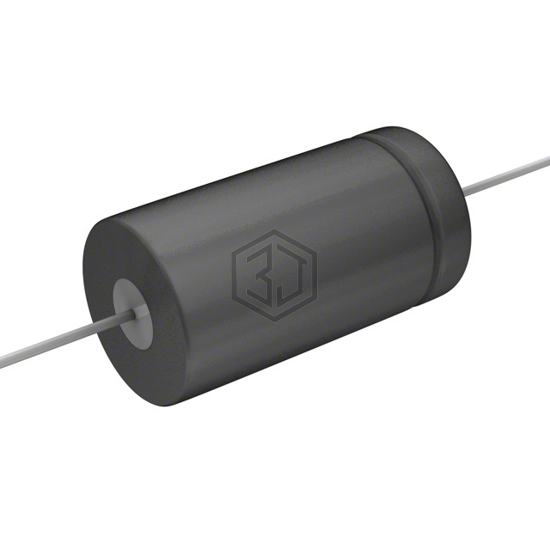

CAP ALUM 16UF 350V AXIAL
TC64 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 16UF 350V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Axial, Can.
In Stock: 3,496
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 16 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 9.54Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 302 mA @ 120 Hz |
| Ripple Current @ High Frequency | 377.5 mA @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.750" Dia x 1.375" L (19.05mm x 34.93mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TC64 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF401ELL160MJ25S | United Chemi-Con | CAP ALUM 16UF 20% 400V RADIAL TH | 78% | View |
| UVC2G180MPD | Nichicon | CAP ALUM 18UF 20% 400V RADIAL | 76% | View |
| EGXF351ELL160MJ20S | United Chemi-Con | CAP ALUM 16UF 20% 350V RADIAL TH | 75% | View |
| UCY2H180MHD | Nichicon | CAP ALUM 18UF 20% 500V RADIAL | 73% | View |
| 601D166F200FE1 | Vishay Sprague | CAP ALUM 16UF 200V AXIAL | 64% | View |
| 600D176F200DJ5 | Vishay Sprague | CAP ALUM 17UF 200V AXIAL | 59% | View |
Submit your RFQ for TC64 and get a quote within 24 hours.
