Cornell Dubilier Electronics (CDE)

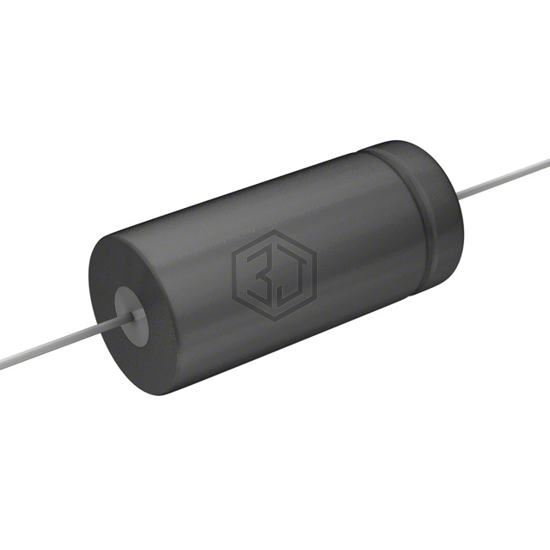

CAP ALUM 50UF 250V AXIAL
TC59 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 50UF 250V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Axial, Can.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 50 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 2.15Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.750" Dia x 1.625" L (19.05mm x 41.28mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
Submit your RFQ for TC59 and get a quote within 24 hours.
