Cornell Dubilier Electronics (CDE)
CAP ALUM 40UF 250V AXIAL

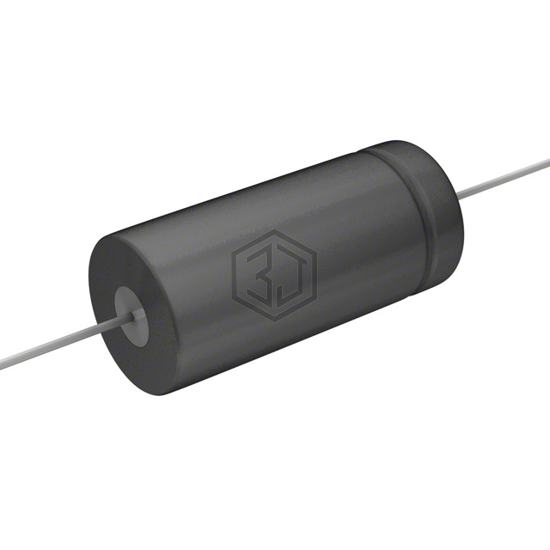

TC58 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 40UF 250V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Axial, Can.
In Stock: 7,373
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 40 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 2.69Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 573 mA @ 120 Hz |
| Ripple Current @ High Frequency | 716.25 mA @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.750" Dia x 1.625" L (19.05mm x 41.28mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TC58 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2G390MHD | Nichicon | CAP ALUM 39UF 20% 400V RADIAL | 74% | View |
| 420BXW39MEFR16X20 | Rubycon | CAP ALUM 39UF 20% 420V RADIAL | 67% | View |
| 450QXW39MEFR10X40 | Rubycon | CAP ALUM 39UF 20% 450V RADIAL | 67% | View |
| 400QXW39MEFR8X50 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 63% | View |
| 610D406G020DE2E3 | Vishay Sprague | CAP ALUM 40UF 20V AXIAL | 56% | View |
| 610D406G020DE2 | Vishay Sprague | CAP ALUM 40UF 20V AXIAL | 56% | View |
Submit your RFQ for TC58 and get a quote within 24 hours.
