Cornell Dubilier Electronics (CDE)

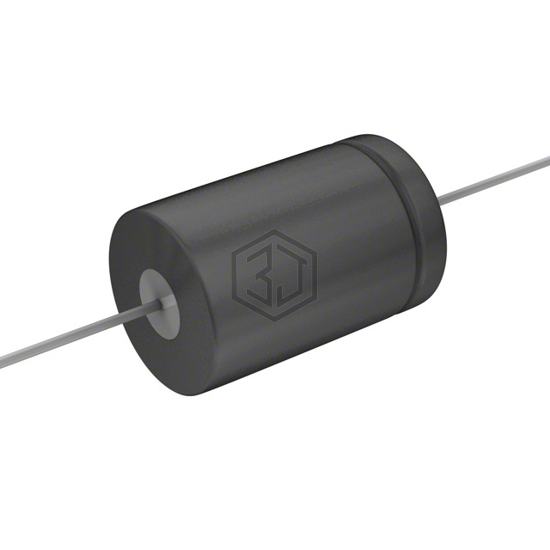

CAP ALUM 20UF 250V AXIAL
TC55 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 20UF 250V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Axial, Can.
In Stock: 1,048
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 20 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 6.13Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 345 mA @ 120 Hz |
| Ripple Current @ High Frequency | 431.25 mA @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.750" Dia x 1.125" L (19.05mm x 28.58mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TC55 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 30D206F150DH2 | Vishay Sprague | CAP ALUM 20UF 150V AXIAL | 67% | View |
| TE1509-E3 | Vishay Sprague | CAP ALUM 20UF 150V AXIAL | 67% | View |
| TE1509 | Vishay Sprague | CAP ALUM 20UF 150V AXIAL | 67% | View |
| EGXF351ELL200MJ25S | United Chemi-Con | CAP ALUM 20UF 20% 350V RADIAL TH | 66% | View |
| 30D206G050CC5A | Vishay Sprague | CAP ALUM 20UF 50V AXIAL | 56% | View |
| TVAN1220-E3 | Vishay Sprague | CAP ALUM 20UF 30V AXIAL | 56% | View |
Submit your RFQ for TC55 and get a quote within 24 hours.
