Cornell Dubilier Electronics (CDE)

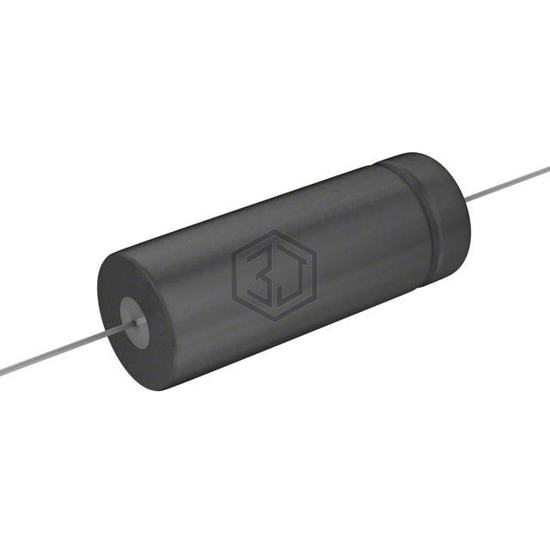

CAP ALUM 1500UF 50V AXIAL
TC50150 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1500UF 50V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Axial, Can.
In Stock: 180
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.423 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.9 A @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.000" Dia x 2.625" L (25.40mm x 66.68mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
Submit your RFQ for TC50150 and get a quote within 24 hours.
