Cornell Dubilier Electronics (CDE)

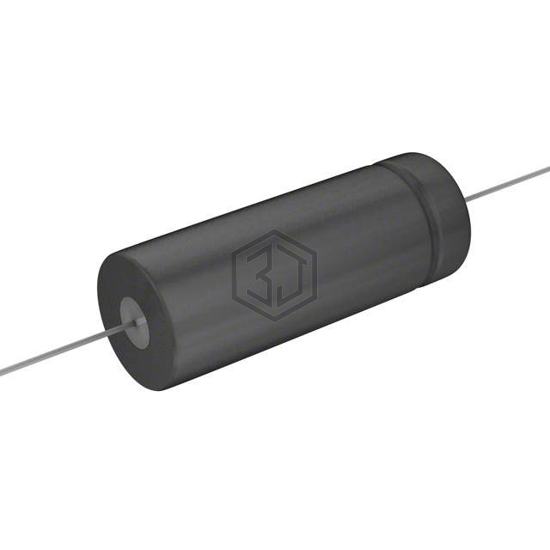

CAP ALUM 500UF 100V AXIAL
TC10501 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 500UF 100V AXIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Axial, Can.
In Stock: 7,097
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 500 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.251 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.77 A @ 2.4 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.000" Dia x 2.625" L (25.40mm x 66.68mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
TC10501 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D507F100JT1 | Vishay Sprague | CAP ALUM 500UF 100V AXIAL | 100% | View |
| TVA1376 | Vishay Sprague | CAP ALUM 500UF 100V AXIAL | 100% | View |
| TVA1315 | Vishay Sprague | CAP ALUM 500UF 50V AXIAL | 56% | View |
| TVA1209-E3 | Vishay Sprague | CAP ALUM 500UF 25V AXIAL | 56% | View |
| TE1068-E3 | Vishay Sprague | CAP ALUM 500UF 3V AXIAL | 56% | View |
| TE1107.5 | Vishay Sprague | CAP ALUM 500UF 6V AXIAL | 56% | View |
Submit your RFQ for TC10501 and get a quote within 24 hours.
