Cornell Dubilier Electronics (CDE)

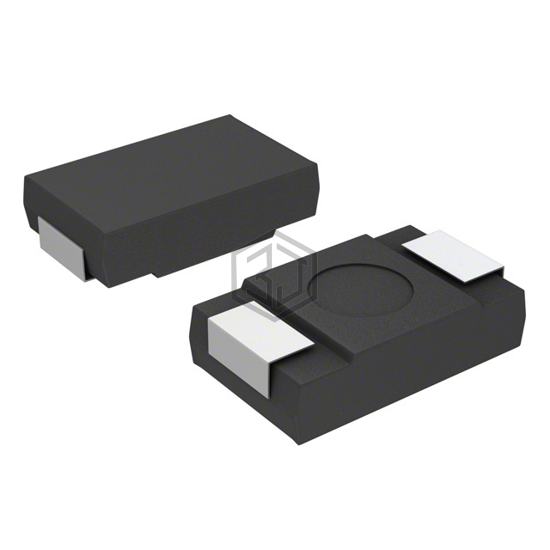

CAP ALUM POLY 330UF 20% 2V SMD
SPCX331M02R is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY 330UF 20% 2V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 2 V, package / case 2917 (7343 Metric).
In Stock: 8,303
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
SPCX331M02R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEF-CX0D331XR | Panasonic Electronic Components | CAP ALUM POLY 330UF 20% 2V SMD | 97% | View |
| SA10BM331A19R09XXX | AiSHi Capacitors | H-CHIP D-CASE ALUMINUM POLYMER | 92% | View |
| 2.5SW330M2.9X7.3 | Rubycon | CAP ALUM POLY 330UF 20% 2.5V SMD | 86% | View |
| 875016319002 | Würth Elektronik | CAP ALUM POLY 330UF 20% 2.5V SMD | 70% | View |
| EEF-LX0E331R | Panasonic Electronic Components | CAP ALUM POLY 330UF 20% 2.5V SMD | 58% | View |
| EEF-LX0E331R4 | Panasonic Electronic Components | CAP ALUM POLY 330UF 20% 2.5V SMD | 55% | View |
Submit your RFQ for SPCX331M02R and get a quote within 24 hours.
