Cornell Dubilier Electronics (CDE)
CAP ALUM 3300UF 20% 50V SNAP

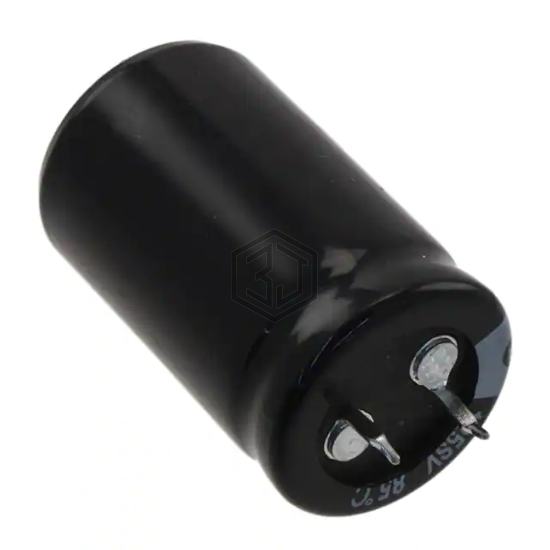

SLPX332M050C1P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 3,709
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 141mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.98 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50USC3300MEFCSN20X35 | Rubycon | CAP ALUM 3300UF 20% 50V SNAP | 98% | View |
| MAL214261332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 50V RADIAL | 90% | View |
| EEU-FS1C332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 76% | View |
| UHD1A332MHD1TO | Nichicon | CAP ALUM 3300UF 20% 10V RADIAL | 75% | View |
| MAL214666332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 67% | View |
| LGU2A332MELC | Nichicon | CAP ALUM 3300UF 20% 100V SNAP | 65% | View |
