Cornell Dubilier Electronics (CDE)

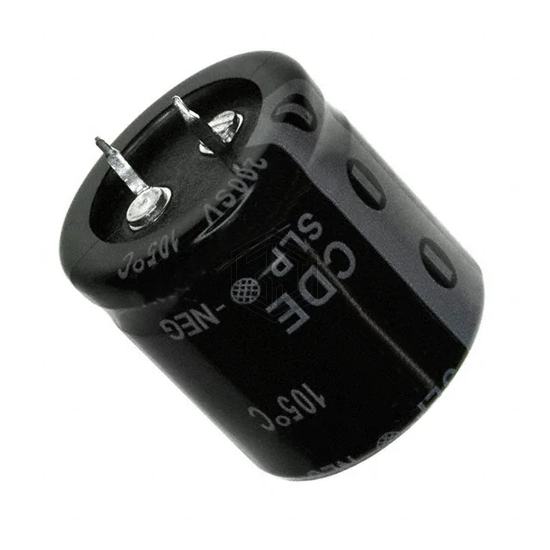

CAP ALUM 8200UF 20% 35V SNAP
SLP822M035E3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 8200UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 4,081
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 65mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.63 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07AB482F42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 35V SNAP | 99% | View |
| EKZN6R3ELL822MM20S | United Chemi-Con | CAP ALUM 8200UF 20% 6.3V RADIAL | 77% | View |
| 25MXG8200MEFCSN20X40 | Rubycon | CAP ALUM 8200UF 20% 25V SNAP | 77% | View |
| 16MXC8200MEFCSN22X25 | Rubycon | CAP ALUM 8200UF 20% 16V SNAP | 61% | View |
| 860020280028 | Würth Elektronik | CAP ALUM 8200UF 20% 10V RADIAL | 58% | View |
| EKMH800VSN822MA45S | United Chemi-Con | CAP ALUM 8200UF 20% 80V SNAP | 56% | View |
