Cornell Dubilier Electronics (CDE)

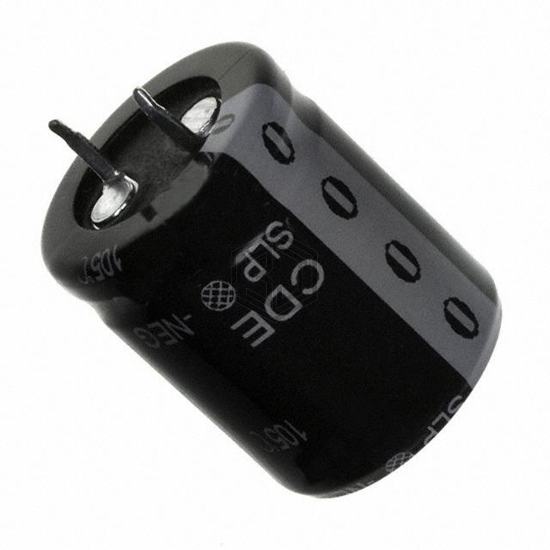

CAP ALUM 5600UF 20% 35V SNAP
SLP562M035C3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 5600UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 3,145
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 95mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELBG250ELL562ALN3S | United Chemi-Con | CAP ALUM 5600UF 25V RADIAL | 85% | View |
| THAS562M035AD1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V FLATPACK | 84% | View |
| 381LQ562M050J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 50V SNAP | 80% | View |
| ELXZ250ELL562MM40S | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 77% | View |
| 25YXG5600MEFCGC18X40 | Rubycon | CAP ALUM 5600UF 20% 25V RADIAL | 76% | View |
| MAL214655562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 16V RADIAL | 69% | View |
