Cornell Dubilier Electronics (CDE)

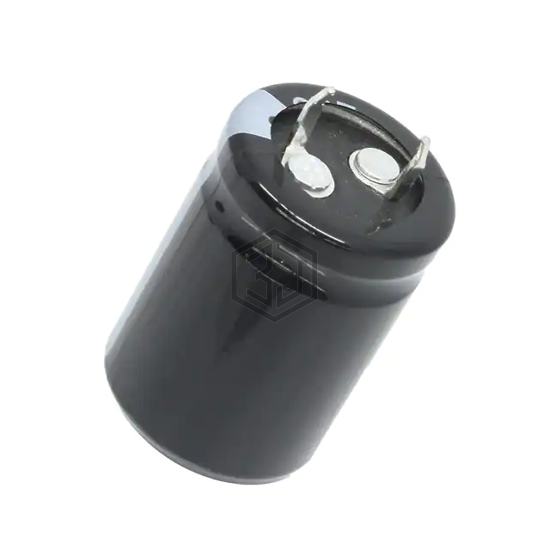

CAP ALUM 560UF 20% 315V SNAP
SLP561M315H5P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 1,822
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 592mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.01 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGW2E561MELA35 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 88% | View |
| LKX2W561MESC50 | Nichicon | CAP ALUM 560UF 20% 450V SNAP | 87% | View |
| B43504A9567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 87% | View |
| ALA8DD561DE400 | KEMET | CAP ALUM 560UF 20% 400V SNAP | 86% | View |
| B43504A567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V SNAP | 85% | View |
| 400HXC560MEFCSN35X50 | Rubycon | CAP ALUM 560UF 20% 400V SNAP | 73% | View |
