Cornell Dubilier Electronics (CDE)
CAP ALUM 4700UF 20% 63V SNAP

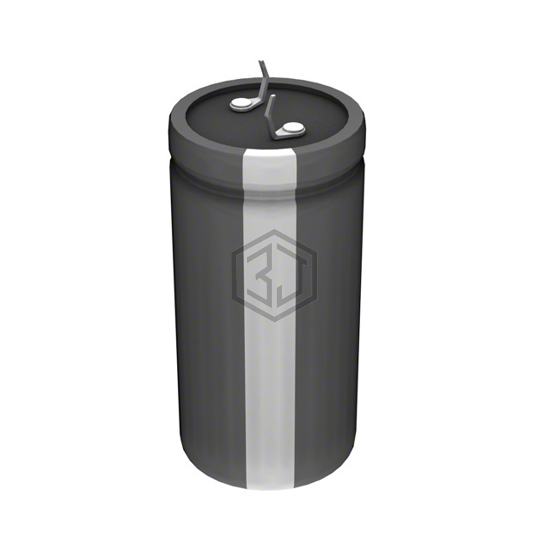

SLP472M063C9P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4700UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 4,062
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 85mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.75 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LXZ25VB472M16X40LL | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 78% | View |
| UHV1C472MHD1TN | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 75% | View |
| PEH534MDC4470M2 | KEMET | CAP ALUM SNAP-IN HIGH RIPPLE | 73% | View |
| PEH534MDC4470M4 | KEMET | CAP ALUM SNAP-IN HIGH RIPPLE | 73% | View |
| MAL212046472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V T/H | 66% | View |
| MAL215064472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 55% | View |
Submit your RFQ for SLP472M063C9P3 and get a quote within 24 hours.
