Cornell Dubilier Electronics (CDE)
CAP ALUM 3300UF 20% 80V SNAP

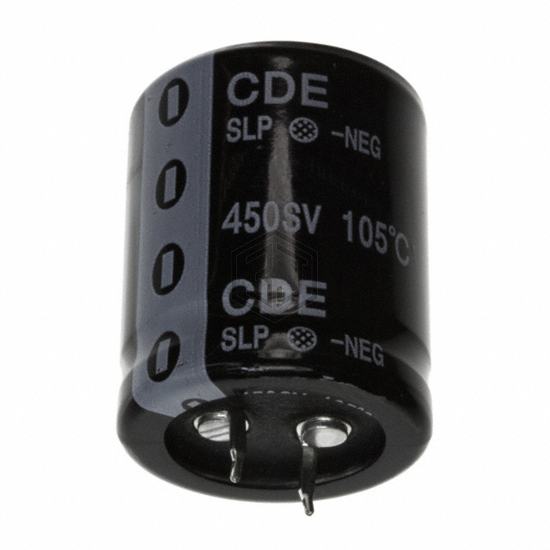

SLP332M080E5P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 3,898
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 101mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.61 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.26 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP332M080H3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 80V SNAP | 100% | View |
| 381LX332M050J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 50V SNAP | 71% | View |
| 25RX303300MGC16X35.5 | Rubycon | CAP ALUM 3300UF 20% 25V RADIAL | 67% | View |
| UBW1C332MHD | Nichicon | CAP ALUM 3300UF 20% 16V RADIAL | 66% | View |
| B41888D7338M009 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V RADIAL | 63% | View |
| MAL212547332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V AXIAL | 58% | View |
Submit your RFQ for SLP332M080E5P3 and get a quote within 24 hours.
