Cornell Dubilier Electronics (CDE)
CAP ALUM 22000UF 20% 25V SNAP

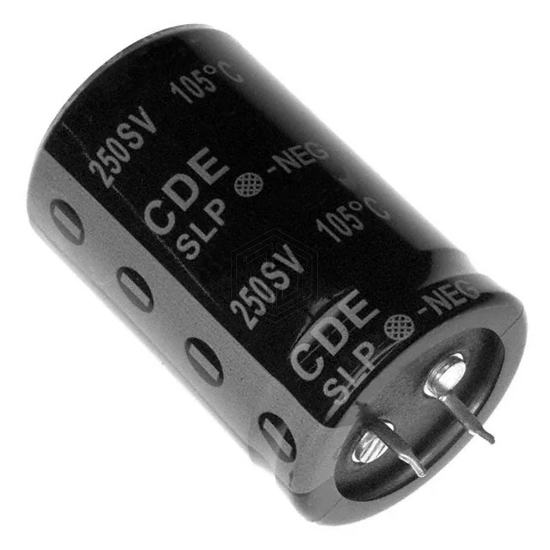

SLP223M025E4P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 9,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 27mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.38 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1E223MELC | Nichicon | CAP ALUM 22000UF 20% 25V SNAP | 94% | View |
| MAL205856223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 89% | View |
| SLP223M016E3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 16V SNAP | 81% | View |
| 16MXC22000MEFCSN30X30 | Rubycon | CAP ALUM 22000UF 20% 16V SNAP | 73% | View |
| LGU1C223MELA | Nichicon | CAP ALUM 22000UF 20% 16V SNAP | 73% | View |
| LGY1C223MELA45 | Nichicon | CAP ALUM 22000UF 20% 16V SNAP | 72% | View |
