Cornell Dubilier Electronics (CDE)
CAP ALUM 1200UF 20% 250V SNAP

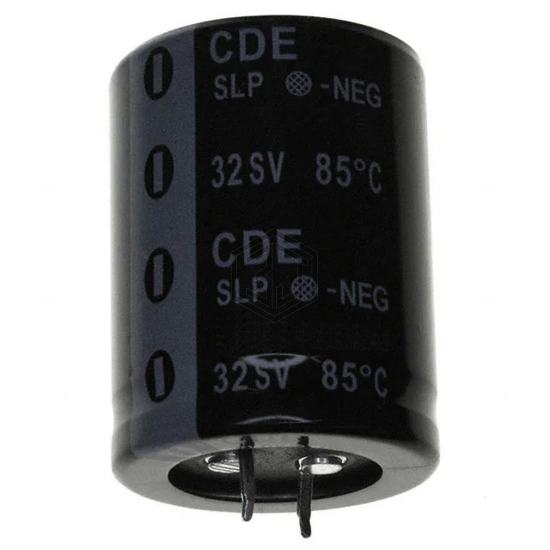

SLP122M250H4P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1200UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,302
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 166mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.54 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXM251VSN122MA50S | United Chemi-Con | CAP ALUM 1200UF 20% 250V SNAP | 97% | View |
| MAL215973122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 250V SNAP | 95% | View |
| LGX2D122MELC35 | Nichicon | CAP ALUM 1200UF 20% 200V SNAP | 90% | View |
| EKMH201VNN122MA35U | United Chemi-Con | CAP ALUM 1200UF 20% 200V SNAP | 86% | View |
| B43504E2128M60 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 86% | View |
| B43508A2128M2 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 83% | View |
