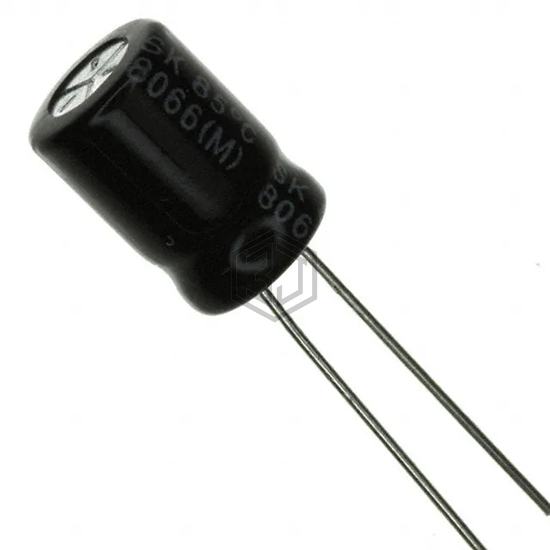

Cornell Dubilier Electronics (CDE)
CAP ALUM 330UF 20% 10V RADIAL
SK331M010ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 330UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,067
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 760mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 330 mA @ 120 Hz |
| Ripple Current @ High Frequency | 363 mA @ 1 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1A331MPD1TD | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 86% | View |
| EEU-FC0J331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 6.3V RADIAL | 78% | View |
| UVR1C331MPD1CM | Nichicon | CAP ALUM 16V POLAR | 73% | View |
| UHE1C331MPD1CC | Nichicon | CAP ALUM 16V POLAR | 65% | View |
| MAL216061331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 56% | View |
| LP331M450H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 450V SNAP | 56% | View |
