Cornell Dubilier Electronics (CDE)

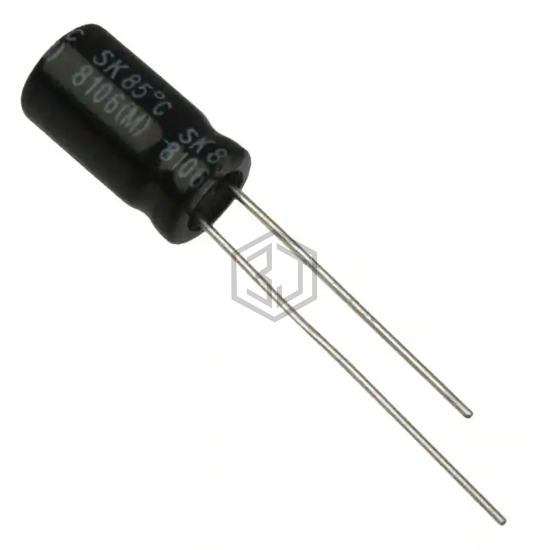

CAP ALUM 33UF 20% 63V RADIAL
SK330M063ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 33UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,754
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 3.62Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 182 mA @ 1 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVK1J330MED | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 90% | View |
| ULD1J330MED | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 89% | View |
| URS1H330MDD1TD | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 83% | View |
| 860130574002 | Würth Elektronik | CAP ALUM 33UF 20% 35V RADIAL | 74% | View |
| MAL203037339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 40V AXIAL | 69% | View |
| UBW1K330MPD1TD | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 57% | View |
Submit your RFQ for SK330M063ST and get a quote within 24 hours.
