Cornell Dubilier Electronics (CDE)
CAP ALUM 2.2UF 20% 100V RADIAL

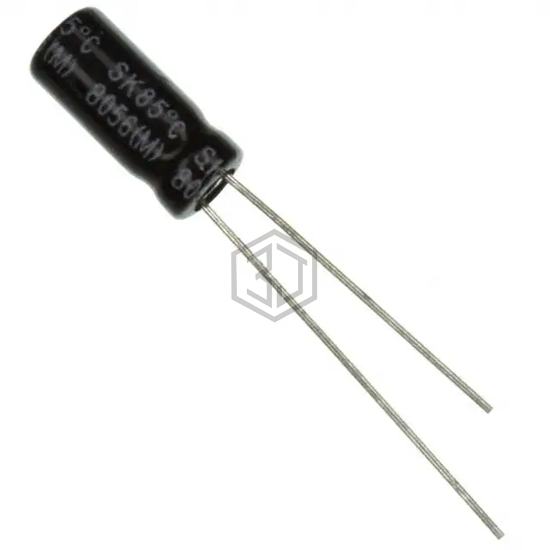

SK2R2M100ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2.2UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,723
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 48.25Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 39 mA @ 1 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TVX2A2R2MAD1LV | Nichicon | CAP ALUM 2.2UF 20% 100V AXIAL | 90% | View |
| 516D225M100JL7BE3 | Vishay Sprague | CAP ALUM 2.2UF 20% 100V AXIAL | 90% | View |
| ESMG500ETC2R2ME11D | United Chemi-Con | CAP ALUM 2.2UF 20% 50V RADIAL | 63% | View |
| 50YXM2R2MEFR5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 59% | View |
| MAL201371228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 50V RADIAL | 58% | View |
| 50MS72R2M4X7 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 52% | View |
Submit your RFQ for SK2R2M100ST and get a quote within 24 hours.
