Cornell Dubilier Electronics (CDE)

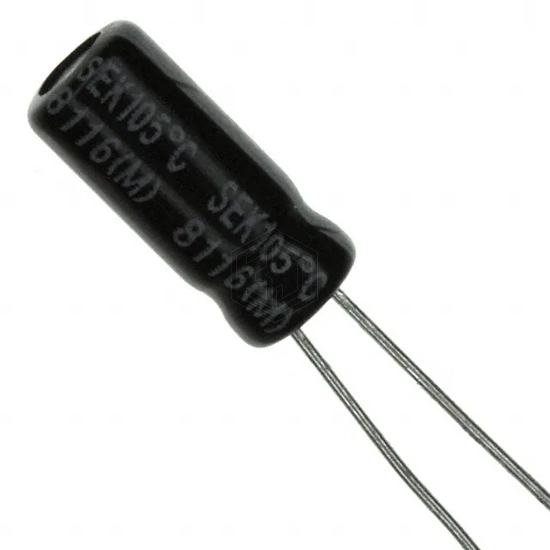

CAP ALUM 0.47UF 20% 200V RADIAL
SEKR47M200ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 0.47UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 5,361
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 423.5Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12 mA @ 120 Hz |
| Ripple Current @ High Frequency | 19.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
SEKR47M200ST is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY2DR47MED1TA | Nichicon | CAP ALUM 0.47UF 20% 200V RADIAL | 96% | View |
| UPW2CR47MED | Nichicon | CAP ALUM 0.47UF 20% 160V RADIAL | 93% | View |
| UPS2ER47MED1TD | Nichicon | CAP ALUM 0.47UF 20% 250V RADIAL | 93% | View |
| 160NXA0.47MEFC5X11 | Rubycon | CAP ALUM 0.47UF 20% 160V RADIAL | 86% | View |
| UEP2AR47MDD1TA | Nichicon | CAP ALUM 0.47UF 20% 100V RADIAL | 74% | View |
| 100YXJ0.47M5X11 | Rubycon | CAP ALUM 0.47UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for SEKR47M200ST and get a quote within 24 hours.
