Cornell Dubilier Electronics (CDE)
CAP ALUM 4.7UF 20% 63V RADIAL

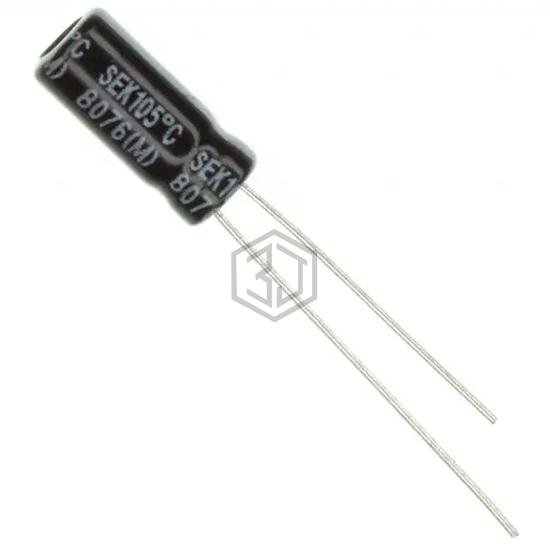

SEK4R7M063ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4.7UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,732
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 28.23Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 34 mA @ 120 Hz |
| Ripple Current @ High Frequency | 47.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1J4R7MED1TA | Nichicon | CAP ALUM 4.7UF 20% 63V RADIAL | 91% | View |
| 860160672005 | Würth Elektronik | CAP ALUM 4.7UF 20% 50V RADIAL | 83% | View |
| UPJ2A4R7MED1TD | Nichicon | CAP ALUM 4.7UF 20% 100V RADIAL | 81% | View |
| B41042A6475M | EPCOS - TDK Electronics | CAP ALUM 4.7UF 20% 50V RADIAL | 81% | View |
| UPW1J4R7MDH | Nichicon | CAP ALUM 4.7UF 20% 63V RADIAL | 79% | View |
| EEU-FC1H4R7B | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V RADIAL | 62% | View |
