Cornell Dubilier Electronics (CDE)

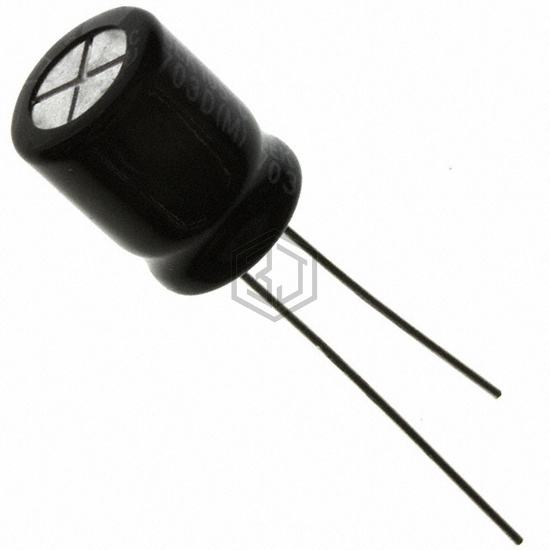

CAP ALUM 3.3UF 20% 400V RADIAL
SEK3R3M400ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3.3UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,448
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 80.42Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 47 mA @ 120 Hz |
| Ripple Current @ High Frequency | 84.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2G3R3MPD1TD | Nichicon | CAP ALUM 3.3UF 20% 400V RADIAL | 100% | View |
| UPM2V3R3MPD1TD | Nichicon | CAP ALUM 3.3UF 20% 350V RADIAL | 92% | View |
| UPW2G3R3MPH | Nichicon | CAP ALUM 3.3UF 20% 400V RADIAL | 91% | View |
| RXJ3R3M1HBK-0511S | Surge | CAP ALUM 50V POLAR | 74% | View |
| 200LLE3.3MEFCTA6.3X11 | Rubycon | CAP ALUM 3.3UF 20% 200V RADIAL | 68% | View |
| 200YXA3R3MEFC6.3X11 | Rubycon | CAP ALUM 3.3UF 20% 200V RADIAL | 63% | View |
Submit your RFQ for SEK3R3M400ST and get a quote within 24 hours.
