Cornell Dubilier Electronics (CDE)

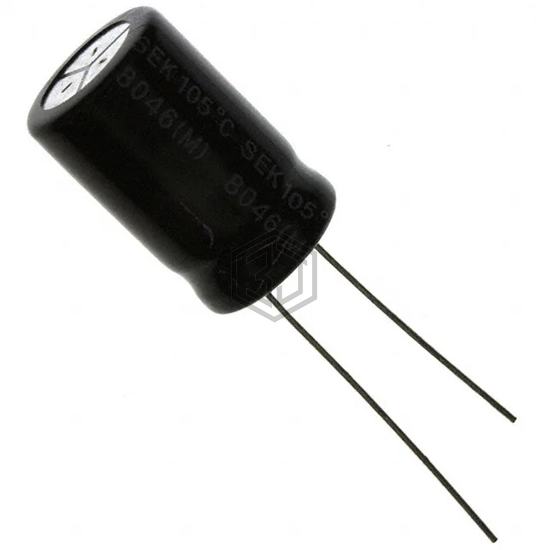

CAP ALUM 3300UF 20% 6.3V RADIAL
SEK332M6R3ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,543
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.32 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA0J332MHD | Nichicon | CAP ALUM 3300UF 20% 6.3V RADIAL | 82% | View |
| 10WXA3300MEFC16X16 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 77% | View |
| MAL213654332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 75% | View |
| ECA-1EHG332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 25V RADIAL | 68% | View |
| ELXV160EMC332MM20S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 65% | View |
| ELXV100ELL332MK35S | United Chemi-Con | CAP ALUM 3300UF 20% 10V RADIAL | 65% | View |
Submit your RFQ for SEK332M6R3ST and get a quote within 24 hours.
