Cornell Dubilier Electronics (CDE)
CAP ALUM 100UF 20% 10V RADIAL

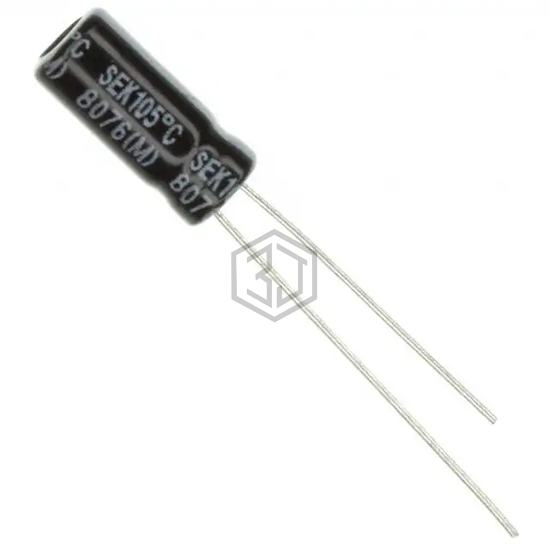

SEK101M010ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,188
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 2.92Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 132 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UST1A101MDD1TA | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 95% | View |
| MAL212364101 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 10V AXIAL | 88% | View |
| UPM1A101MED | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 84% | View |
| EEU-FC1A101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V RADIAL | 78% | View |
| EEU-FC1A101H | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V RADIAL | 78% | View |
| 107RZM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 25V RADIAL | 56% | View |
