Cornell Dubilier Electronics (CDE)

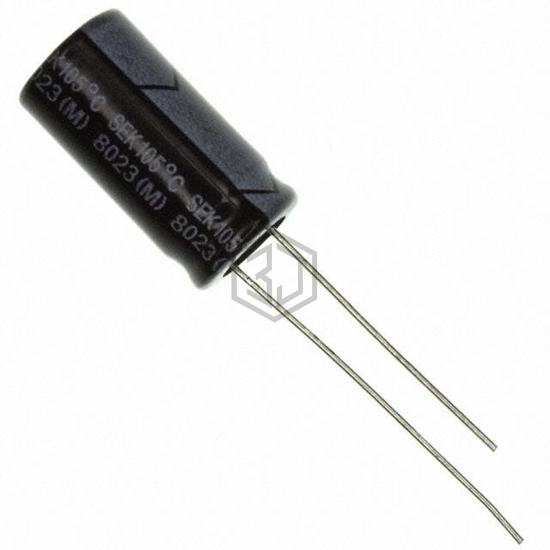

CAP ALUM 10UF 20% 350V RADIAL
SEK100M350ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 4,734
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 26.54Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 171 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00DD210OG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 350V RADIAL | 92% | View |
| ULD2E100MPD | Nichicon | CAP ALUM 10UF 20% 250V RADIAL | 88% | View |
| EGXE251ELL100MJ20S | United Chemi-Con | CAP ALUM 10UF 20% 250V RADIAL | 80% | View |
| UBX2D100MPL1TD | Nichicon | CAP ALUM 10UF 20% 200V RADIAL | 77% | View |
| UVY2G100MPD1CT | Nichicon | CAP ALUM 400V POLAR | 74% | View |
| SEK100M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for SEK100M350ST and get a quote within 24 hours.
