Cornell Dubilier Electronics (CDE)

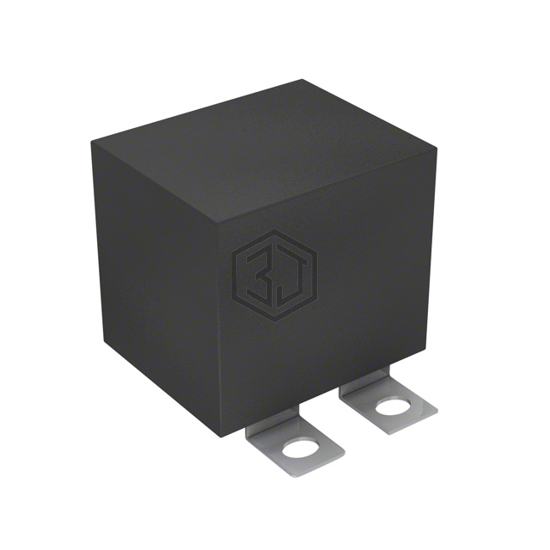

CAP FILM 4.7UF 10% 600VDC SCREW
SCD475K601A3Z25-F is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 4.7UF 10% 600VDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 85°C, voltage rating - dc 600V, package / case Rectangular Box.
In Stock: 2,951
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 600V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4 mOhms |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 2.224" L x 1.827" W (56.50mm x 46.40mm) |
| Height - Seated (Max) | 1.976" (50.20mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.000" (25.40mm) |
| Applications | Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M547070JT1 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 700VDC SCREW | 97% | View |
| MKP386M547070JT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 700VDC SCREW | 97% | View |
| MKP386M547070JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 700VDC SCREW | 97% | View |
| MKP386M547085YT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 850VDC SCREW | 94% | View |
| MKP386M547085YT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 850VDC SCREW | 94% | View |
| MKP386M547100YT7 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4.7UF 5% 1KVDC SCREW | 90% | View |
