Cornell Dubilier Electronics (CDE)

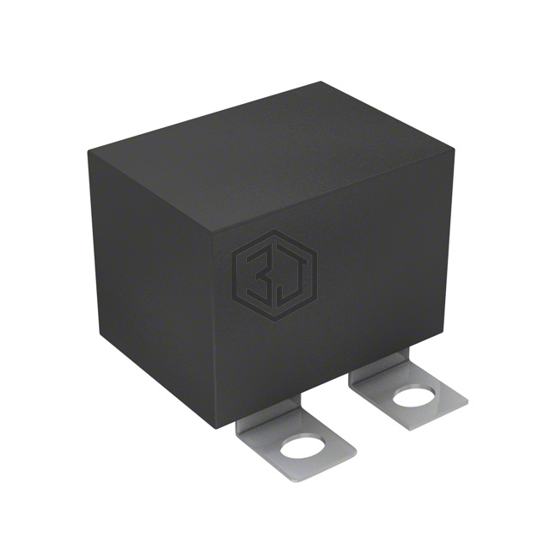

CAP FILM 2UF 10% 1KVDC SCREW
SCD205K102D3Z25-F is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 2UF 10% 1KVDC SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 85°C, voltage rating - dc 1000V (1kV), package / case Rectangular Box.
In Stock: 1,045
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 5 mOhms |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 2.051" L x 1.500" W (52.10mm x 38.10mm) |
| Height - Seated (Max) | 1.500" (38.10mm) |
| Termination | Screw Terminals |
| Lead Spacing | 1.000" (25.40mm) |
| Applications | Snubber |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP386M520100JT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1KVDC SCREW | 100% | View |
| MKP386M520100JT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1KVDC SCREW | 100% | View |
| MKP386M520160YT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1.6KVDC SCREW | 100% | View |
| MKP386M520100JT6 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 1KVDC SCREW | 100% | View |
| MKP386M520085JT4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 850VDC SCREW | 96% | View |
| MKP386M520085JT2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2UF 5% 850VDC SCREW | 96% | View |
Submit your RFQ for SCD205K102D3Z25-F and get a quote within 24 hours.
