Cornell Dubilier Electronics (CDE)

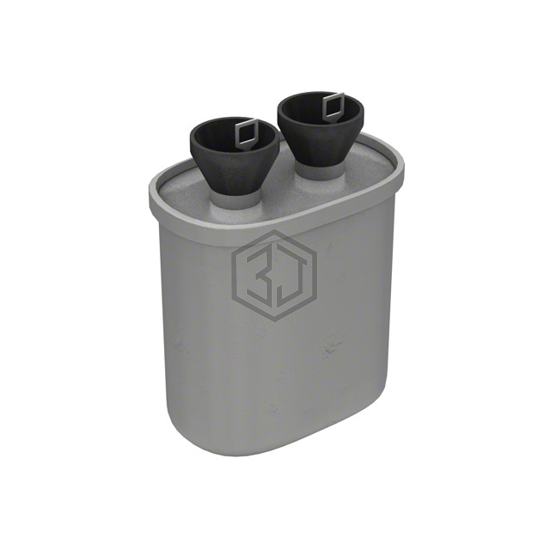

CAP FILM 1UF 10% 1.5KVDC RADIAL
OTBH105KNPIR is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 1UF 10% 1.5KVDC RADIAL. Key specifications: mounting type Chassis Mount, Requires Holder/Bracket, operating temperature -55°C ~ 85°C, voltage rating - dc 1500V (1.5kV), package / case Radial, Can.
In Stock: 6,423
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 660V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Paper, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Chassis Mount, Requires Holder/Bracket |
| Package / Case | Radial, Can |
| Size / Dimension | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip |
| Height - Seated (Max) | 2.250" (57.15mm) |
| Termination | Solder Lug |
| Lead Spacing | 0.810" (20.57mm) |
| Applications | DC Link, DC Filtering; Motor Run |
| Ratings | - |
| Features | - |
OTBH105KNPIR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| OTBH105KNPIR-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 1.5KVDC RADIAL | 100% | View |
| T20W1NR-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 2KVDC RADIAL | 95% | View |
| T10W1NR-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 1KVDC RADIAL | 93% | View |
| T30W1NR-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 3KVDC RADIAL | 88% | View |
| OTBL105KNPIR-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 3KVDC RADIAL | 85% | View |
| T6W1NR-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1UF 10% 600VDC RADIAL | 84% | View |
Submit your RFQ for OTBH105KNPIR and get a quote within 24 hours.
