Cornell Dubilier Electronics (CDE)

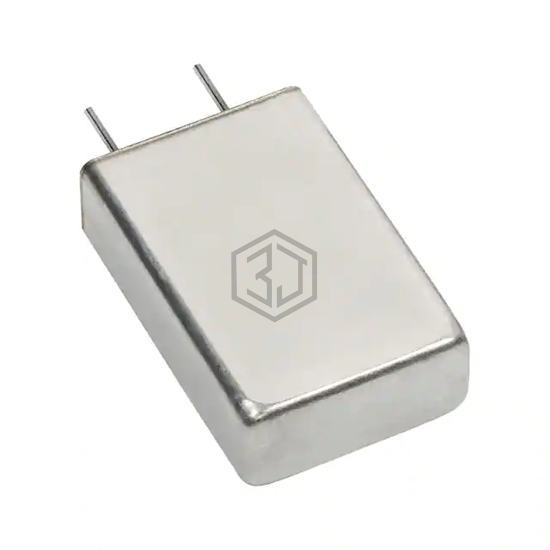

CAP ALUM 2200UF 20% 40V RADIAL
MLSH222M040JK0C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2200UF 20% 40V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 40 V, package / case Radial.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 105mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Hermetically Sealed |
| Ripple Current @ Low Frequency | 6.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.000" L x 0.500" W (25.40mm x 12.70mm) |
| Height - Seated (Max) | 1.500" (38.10mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
Submit your RFQ for MLSH222M040JK0C and get a quote within 24 hours.
