Cornell Dubilier Electronics (CDE)

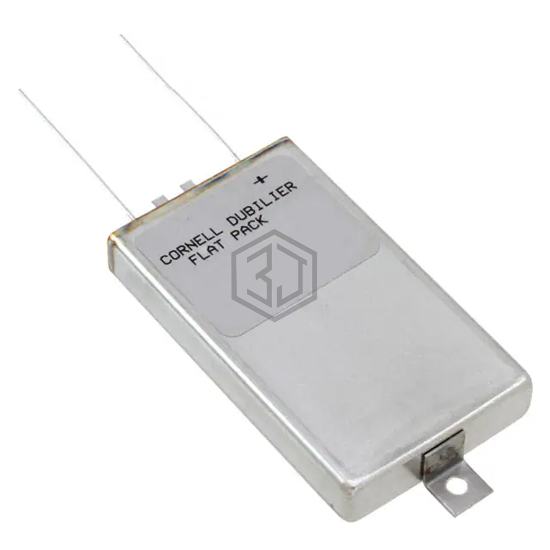

CAP ALUM 560UF 20% 250V FLATPACK
MLS561M250EB1A is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 250V FLATPACK. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 250 V, package / case FlatPack, Tabbed.
In Stock: 2,041
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 240mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 3.000" L x 1.750" W (76.20mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLS561M250EB0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V FLATPACK | 100% | View |
| MLS561M250EB1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V FLATPACK | 100% | View |
| HVMLS561M250EB0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V FLATPACK | 100% | View |
| HVMLS561M250EB1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V FLATPACK | 100% | View |
| HVMLS601M150EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 600UF 20% 150V FLATPACK | 80% | View |
| HVMLS601M150EA1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 600UF 20% 150V FLATPACK | 80% | View |
Submit your RFQ for MLS561M250EB1A and get a quote within 24 hours.
