Cornell Dubilier Electronics (CDE)
CAP ALUM 200UF 20% 420V FLATPACK

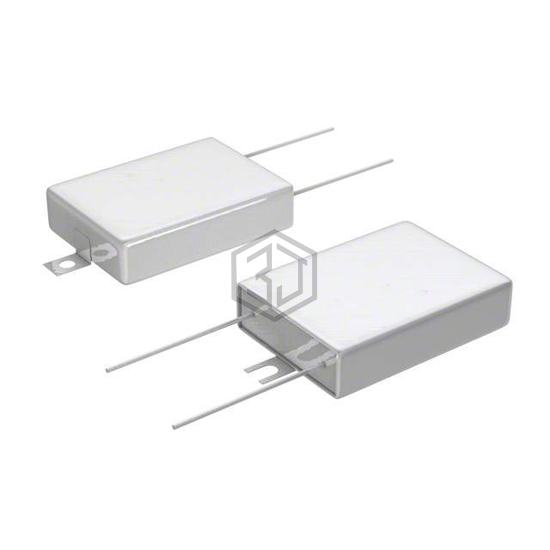

MLP201M420EA0A is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 200UF 20% 420V FLATPACK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 420 V, package / case FlatPack, Tabbed.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 882mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 2.000" L x 1.750" W (50.80mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
Submit your RFQ for MLP201M420EA0A and get a quote within 24 hours.
