Cornell Dubilier Electronics (CDE)
CAP ALUM 170UF 20% 450V FLATPACK

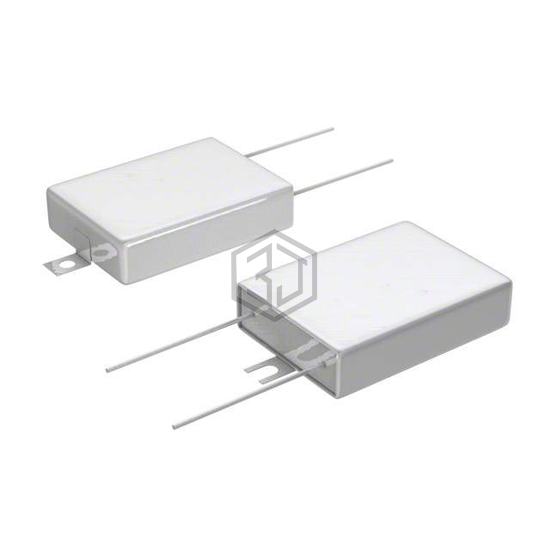

MLP171M450EA1A is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 170UF 20% 450V FLATPACK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case FlatPack, Tabbed.
In Stock: 3,005
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 170 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 973mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 2.000" L x 1.750" W (50.80mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLP171M450EA1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 170UF 20% 450V FLATPACK | 100% | View |
| MLP171M450EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 170UF 20% 450V FLATPACK | 100% | View |
| MLP171M450EA0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 170UF 20% 450V FLATPACK | 100% | View |
| CGS171T450R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 170UF 450V SCREW | 87% | View |
| CG181T350R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 350V SCREW | 85% | View |
| E32D401MLN181MA41U | United Chemi-Con | CAP ALUM 180UF 20% 400V SCREW | 83% | View |
Submit your RFQ for MLP171M450EA1A and get a quote within 24 hours.
