Cornell Dubilier Electronics (CDE)

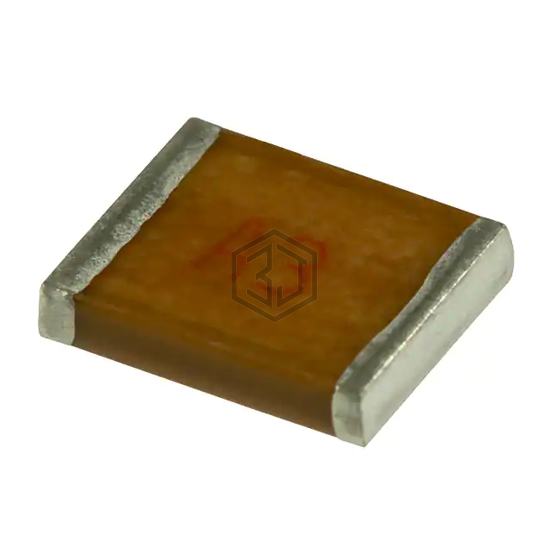

CAP MICA 560PF 5% 500V 2220
MCN22FD561J is a Mica and PTFE Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP MICA 560PF 5% 500V 2220. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 500 V, package / case 2220 (5750 Metric).
In Stock: 1,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 pF |
| Tolerance | ±5% |
| Voltage - Rated | 500 V |
| Dielectric Material | Mica |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 2220 (5750 Metric) |
| Lead Spacing | - |
| Features | RF, High Q, Low Loss |
| Size / Dimension | 0.224" L x 0.197" W (5.70mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC22FD561F-F | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 1% 500V 2220 | 100% | View |
| MC22FD561J-TF | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 5% 500V 2220 | 100% | View |
| MC22FD561G-F | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 2% 500V 2220 | 100% | View |
| MC22FD561G-TF | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 2% 500V 2220 | 100% | View |
| MC22FD561F-TF | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 1% 500V 2220 | 100% | View |
| MC22FF561F-TF | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 1% 1KV 2220 | 56% | View |
Submit your RFQ for MCN22FD561J and get a quote within 24 hours.
