Cornell Dubilier Electronics (CDE)
CAP MICA 560PF 5% 2.5KV SMD

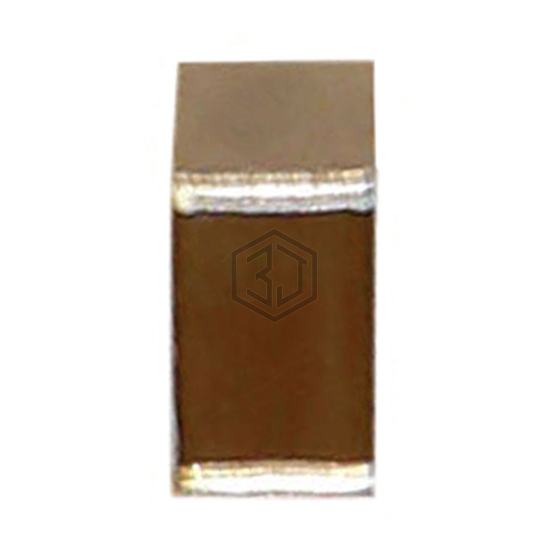

MCHN38FK561J is a Mica and PTFE Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP MICA 560PF 5% 2.5KV SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 2.5 kV, package / case Nonstandard SMD.
In Stock: 5,422
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 pF |
| Tolerance | ±5% |
| Voltage - Rated | 2.5 kV |
| Dielectric Material | Mica |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Lead Spacing | - |
| Features | RF, High Q, Low Loss |
| Size / Dimension | 0.380" L x 0.380" W (9.65mm x 9.65mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
MCHN38FK561J is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCH38FK561J-Y | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 5% 2.5KV SMD | 100% | View |
| MCHN38FK561J-Y | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 5% 2.5KV SMD | 100% | View |
| MCH38FK561J | Cornell Dubilier Electronics (CDE) | CAP MICA 560PF 5% 2.5KV SMD | 100% | View |
| MCH38FK471J-Y | Cornell Dubilier Electronics (CDE) | CAP MICA 470PF 5% 2.5KV SMD | 86% | View |
| MCHN38FK471J | Cornell Dubilier Electronics (CDE) | CAP MICA 470PF 5% 2.5KV SMD | 86% | View |
| MCHN38FK471J-Y | Cornell Dubilier Electronics (CDE) | CAP MICA 470PF 5% 2.5KV SMD | 86% | View |
Submit your RFQ for MCHN38FK561J and get a quote within 24 hours.
