Cornell Dubilier Electronics (CDE)
CAP ALUM 680UF 20% 160V SNAP

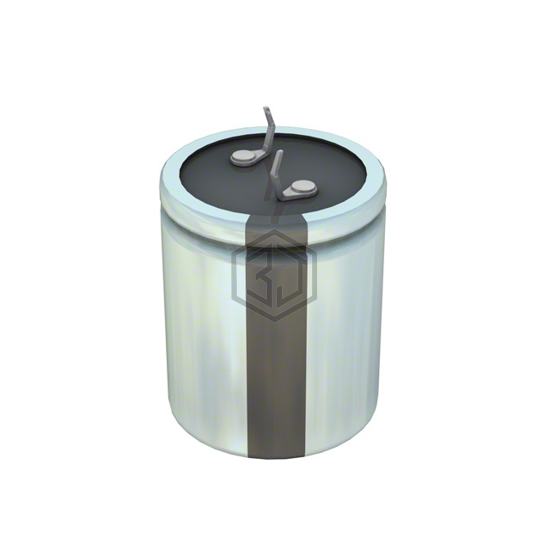

LPX681M160C3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 7,583
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 293mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGG2Z681MELA30 | Nichicon | CAP ALUM 680UF 20% 180V SNAP | 89% | View |
| MAL205723681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 250V SNAP | 73% | View |
| MAL205829681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 100V SNAP | 73% | View |
| NEV680M100GH | NTE Electronics, Inc | CAP ALUM 680UF 20% 100V RADIAL | 70% | View |
| EKZN800ELL681ML25S | United Chemi-Con | CAP ALUM 680UF 20% 80V RADIAL | 69% | View |
| ELHS451VSN681MA50S | United Chemi-Con | CAP ALUM 680UF 20% 450V SNAP | 68% | View |
Submit your RFQ for LPX681M160C3P3 and get a quote within 24 hours.
