Cornell Dubilier Electronics (CDE)

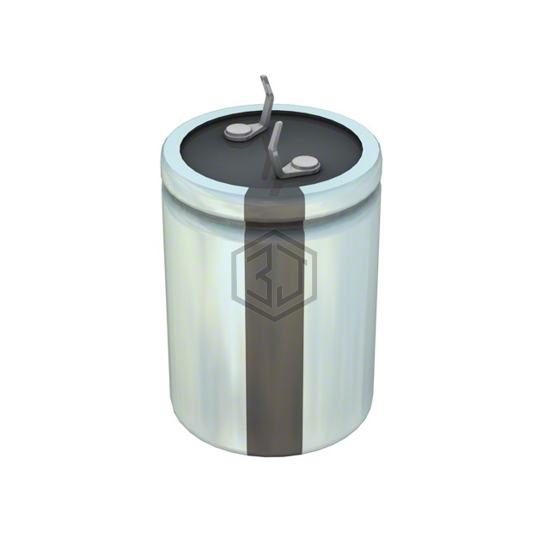

CAP ALUM 68UF 20% 450V SNAP
LPX680M450A3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 68UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,709
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 2.926Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 720 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501B5686M62 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 97% | View |
| B43644A5686M000 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 95% | View |
| MAL204348689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 385V AXIAL | 92% | View |
| MAL225917689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 450V SNAP | 88% | View |
| UCY2E680MHD1TO | Nichicon | CAP ALUM 68UF 20% 250V RADIAL | 69% | View |
| MAL212029689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 100V AXIAL | 60% | View |
Submit your RFQ for LPX680M450A3P3 and get a quote within 24 hours.
