Cornell Dubilier Electronics (CDE)

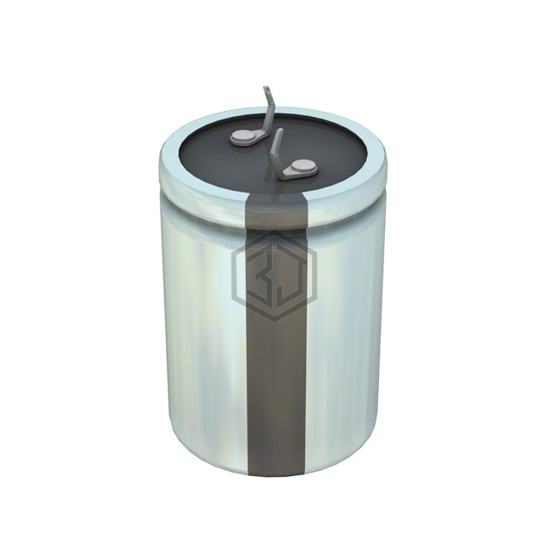

CAP ALUM 560UF 20% 200V SNAP
LPX561M200C5P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.31 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2P561MELA35 | Nichicon | CAP ALUM 560UF 20% 220V SNAP | 90% | View |
| B43305F2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 90% | View |
| MAL225942561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 200V SNAP | 88% | View |
| B43508B2567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 88% | View |
| LGU2E561MELB | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 86% | View |
| B43504B2567M7 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 84% | View |
Submit your RFQ for LPX561M200C5P3 and get a quote within 24 hours.
