Cornell Dubilier Electronics (CDE)
CAP ALUM 560UF 20% 200V SNAP

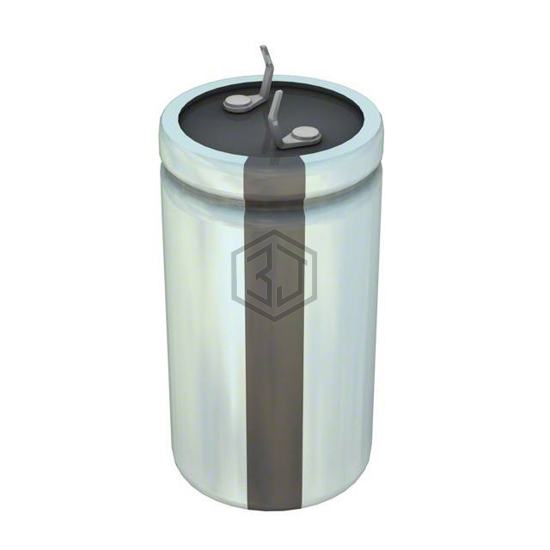

LPX561M200A7P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.31 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504E2567M007 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 92% | View |
| LAR2E561MELZ45 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
| B43509F2567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
| LLG2E561MELA30 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 82% | View |
| LPX561M400H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 400V SNAP | 77% | View |
| B43508A5567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 71% | View |
Submit your RFQ for LPX561M200A7P3 and get a quote within 24 hours.
