Cornell Dubilier Electronics (CDE)

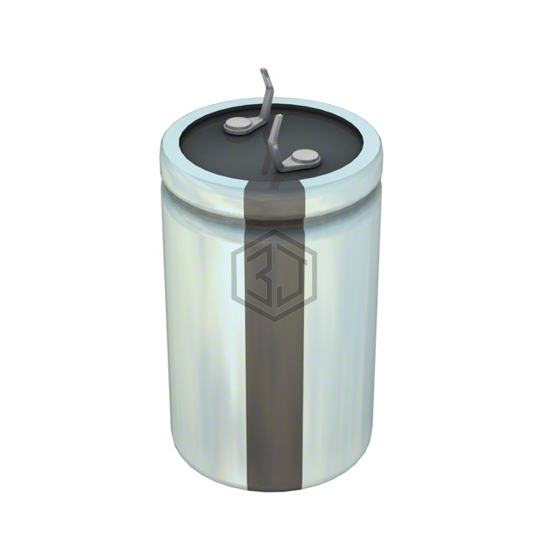

CAP ALUM 560UF 20% 160V SNAP
LPX561M160A5P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 3,946
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.98 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43601B2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 88% | View |
| B43508B2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 84% | View |
| 381LX561M250J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V SNAP | 81% | View |
| 381LQ561M315K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 315V SNAP | 74% | View |
| B43601E2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 74% | View |
| B43540E2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 71% | View |
Submit your RFQ for LPX561M160A5P3 and get a quote within 24 hours.
